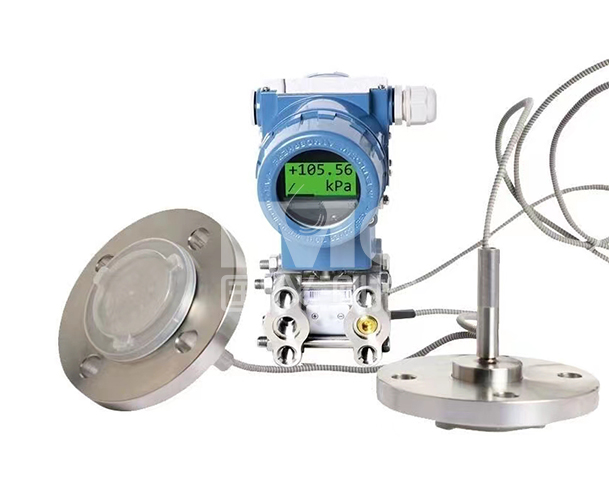

1. Comprehensive Measurement Range: 0 to 7000 kPa, offering multiple options and flexible applications to meet the needs of the majority of users.

2. Compact, Sturdy, and Vibration-Resistant Structure: An integrated junction box with local zero and span adjustment and LCD configuration buttons simplifies installation, calibration, and operation.

3. Non-Contact Local Zero and Span Adjustment: Designed on the transmitter housing with LCD parameter configuration buttons for convenient on-site zero and span adjustments and setting required on-site display parameters.

4. Solid, Plug-In Printed Circuit Board and Modular Structure: Facilitates fault repair and reduces spare parts inventory.

5. Adjustable Damping: Enhances user options.

6. Intelligent Circuit: Simplifies user operation.

7. Independent Electromagnetic Interference Circuit and Software Anti-Interference Design: Enhances product reliability.

8. Two Additional Ports**: For connection to flanges (or other connection methods) and process pipelines.

Medium: Liquid, gas, or steam

Basic Accuracy: ±0.1%, ±0.2%

Turn-Down Ratio: 40:1

Response Time: ≤200 ms

Stability: ±0.1% over 12 months within the maximum range

Measurement Range: Pressure 0~7000 KPa

Temperature Range:

Electronic Circuit Board: -40 to 85°C

Sensing Elements: -40 to 104°C

Storage Temperature: -40 to 85°C

With Digital Display: -30 to 75°C

Without Damage: -40 to 85°C

Explosion-Proof Rating: ExdIICT6Gb / ExiaIICT4...T6

Protection Rating: IP67

Materials of Construction:

Vent and Drain Valves: SUS316L, Hastelloy, Monel, Tantalum

Fill Fluid: Silicone oil, high-temperature silicone oil, inert oil

Flange, Bolts, and Connector Materials: SUS316L, etc.

Wetted Parts: SUS316L, Hastelloy, Monel, Tantalum

Measuring Diaphragm: SUS316L, Hastelloy, Monel, Tantalum

Housing Material: Polyurethane painted cast aluminum alloy + stainless steel 316/304

Electrical Interface: M20*1.5 (internal), 1/2 NPT (internal)
