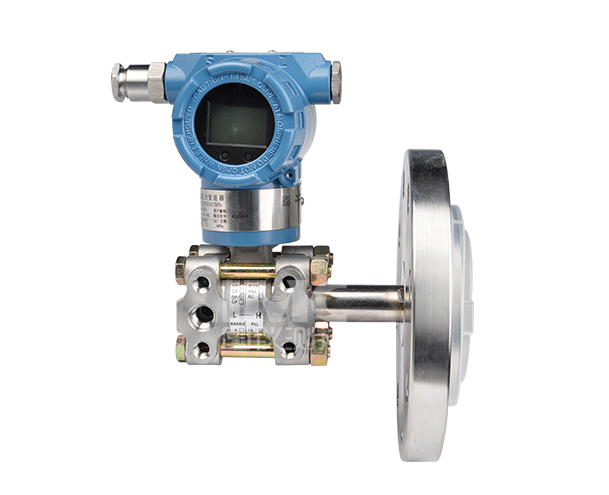

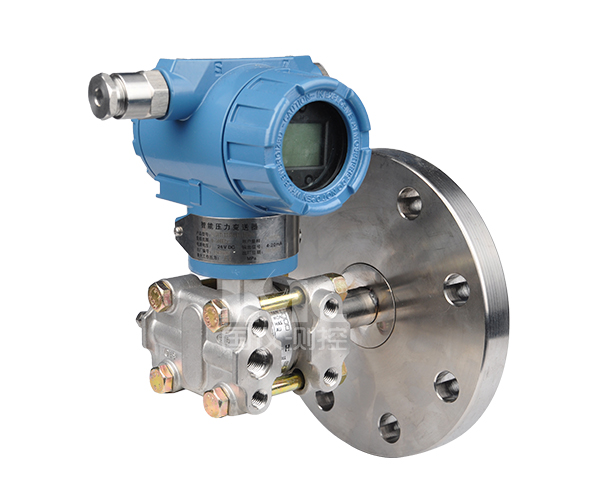

Pressure GaugesThe YCMC-Y single-flange level transmitter measures pressure signals with atmospheric pressure (low-pressure side) as the reference. It features a port for connection to flanges (or other methods) and process pipelines.
Built upon the foundation of a differential pressure transmitter, it includes an isolation diaphragm box for measuring the liquid-contacting part. This transmitter is primarily used for measuring media that are high-temperature, prone to solidification or crystallization, contain solid suspensions, are highly viscous, corrosive, or require sanitary conditions to be maintained without contamination.
The basic measuring elements and technical performance of the differential pressure transmitter are the same. However, after adding a remote transmission device, there may be a slight decrease in measurement accuracy and a slower response speed. It's important to carefully consider the installation position, particularly when dealing with lower pressures, to ensure that the measured pressure remains within the measuring range of the basic measuring elements.
