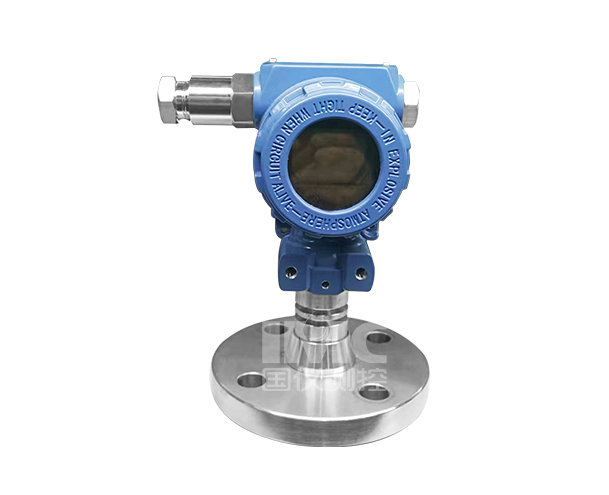

Pressure GaugesThe YCMC-D single-flange pressure transmitter is suitable for measuring pressure under conditions where pressures are relatively high. When measuring very low pressures, the YCMC-D single-flange pressure transmitter is considered. It measures pressure signals with atmospheric pressure as the reference end, with one port for flange (or other connection methods) and process pipeline connection.
Built upon the foundation of ordinary pressure transmitters, it incorporates an isolation membrane box for the measuring liquid interface. It is primarily used for measuring media that are high-temperature, prone to solidification or crystallization, contain solid suspensions, are excessively viscous, corrosive, or require sanitary conditions to be maintained without contamination. Its basic measuring elements share the technical performance and specifications of digital pressure transmitters. When equipped with remote transmission devices, there may be a slight decrease in measurement accuracy and a slower response speed. In cases of relatively low pressure, attention should be paid to the installation position to ensure that the measured pressure falls within the measurement range of the basic measuring elements.
